Thermal & Energy Performance
Performance related to insulation, comfort and energy efficiency
U Value: 2.9-3.7
SHGC: 0.34-0.66
Sound Insulation: 25-45 dB
Weather Performance
Performance under wind, rain and external conditions
Water Resistance: 600 Pa
Air Infiltration: 0.03-0.05 L/s.m²
Wind Load Rating: N6

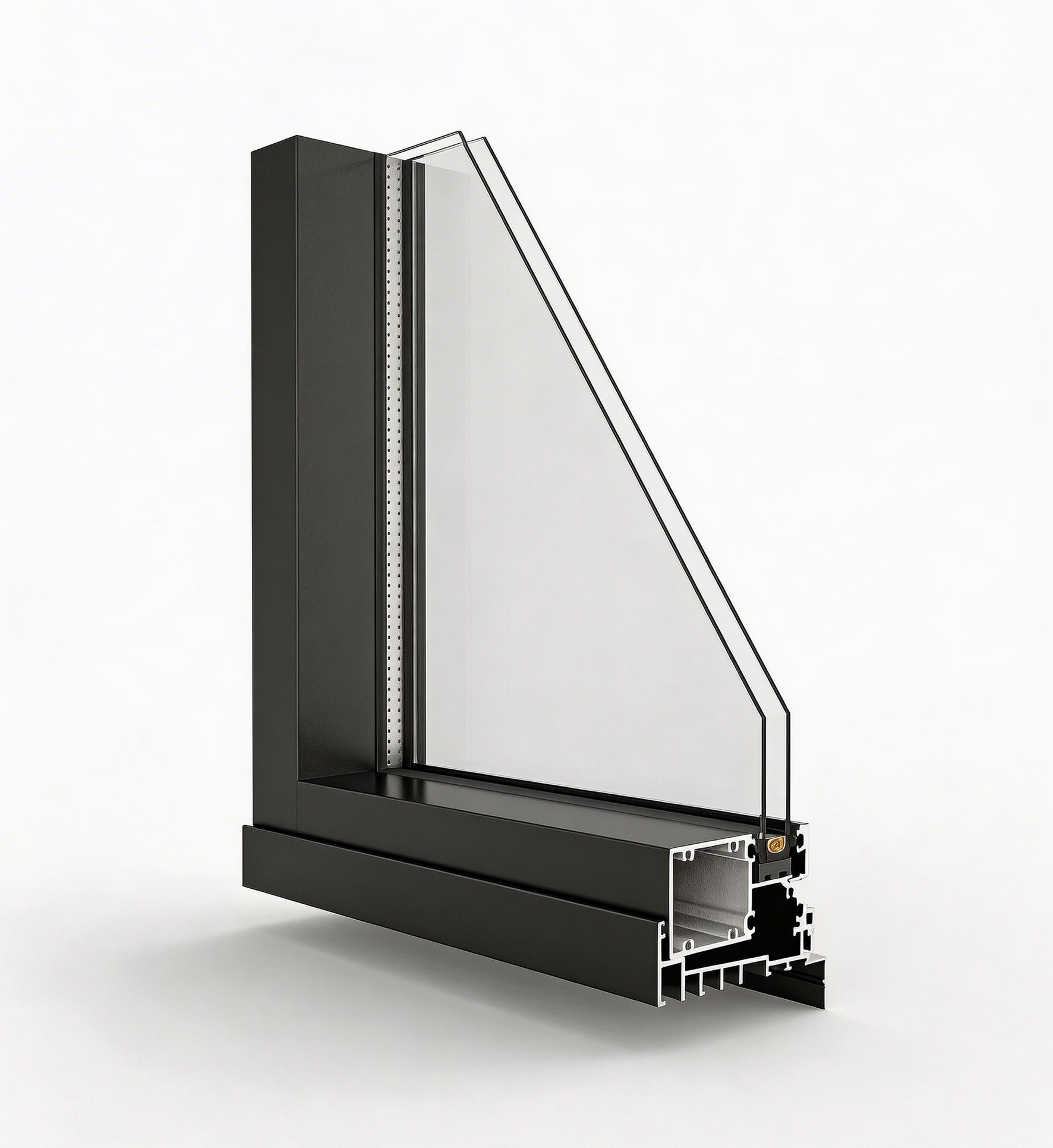

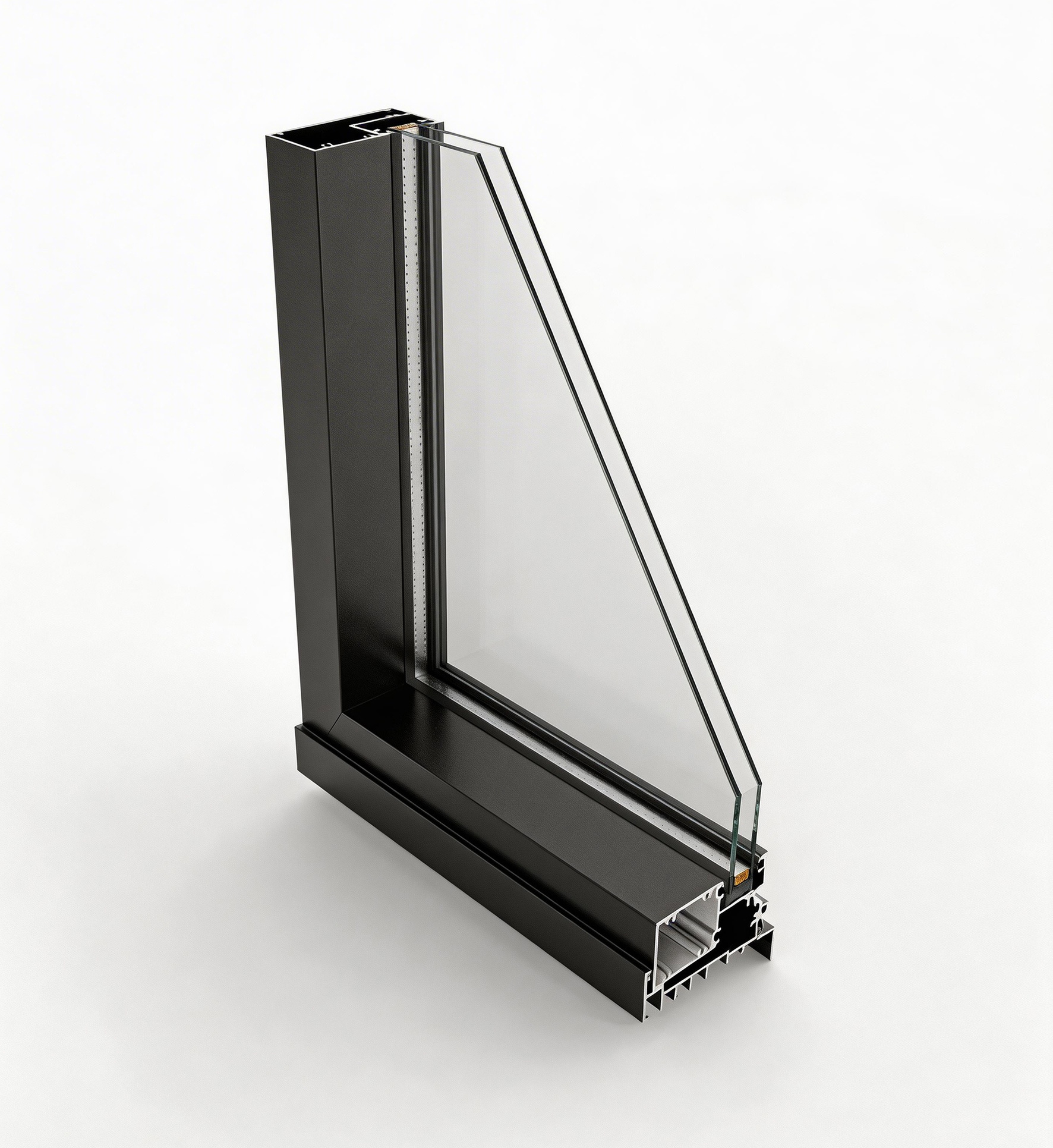

Structural Details
Core construction and system specifications
Thermal Break: No (Non-Thermal Break System)
Frame Depth: 100 mm
Ultimate Strength: ±4000 Pa
Frame Colours
Available in standard colours (black, white and grey), with custom finishes offered for large-scale projects
Glass Options
Low-E, obscured, fluted, laminated, grey and acoustic glass
Hardware
N/A
Flyscreen
N/A
Explore our standard size range and possible configurations to determine the most appropriate door for your home.
